Introduction: Applications◆The following materials are dried in pharmaceutical,food,chemical and other industries.◆Suitable for paste,paste and powder materials.◆Heat sensitive materials requiring low temperature drying.◆Easily oxidizable,explosive,highly irrit…
◆The following materials are dried in pharmaceutical,food,chemical and other industries.
◆Suitable for paste,paste and powder materials.
◆Heat sensitive materials requiring low temperature drying.
◆Easily oxidizable,explosive,highly irritating and toxic materials.
◆Material requiring recovery of organic solvent.
◆This machine adopts large area interlayer heating mode,with large heat transfer surface and high thermal efficiency.

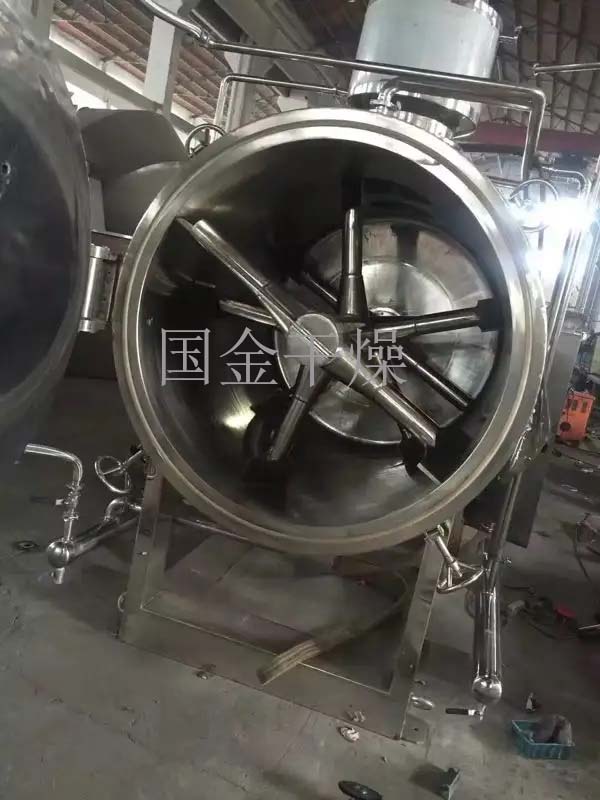

◆This machine is equipped with stirring to make the materials form a continuous circulation state in the cylinder,thus improving the heating uniformity of the materials in one step.
◆This machine is equipped with stirring,so as to dry slurry,paste and pasty materials smoothly.
◆Special discharge port design makes the discharge port more sealed,less prone to material accumulation and more convenient to discharge.
◆There are two kinds of sealing machine seals and packing seals.The special design ensures the sealing performance and service life.
◆The special processing of the shaft and rake blade greatly ensures the strength and concentricity of the shaft.
◆According to user's requirements,medium can be introduced into the shaft and vibrating device can be added.
◆Different filtering forms are configured according to different materials.
◆Half-pipe jacket is adopted for the jacket of the harrow dryer above 5m.

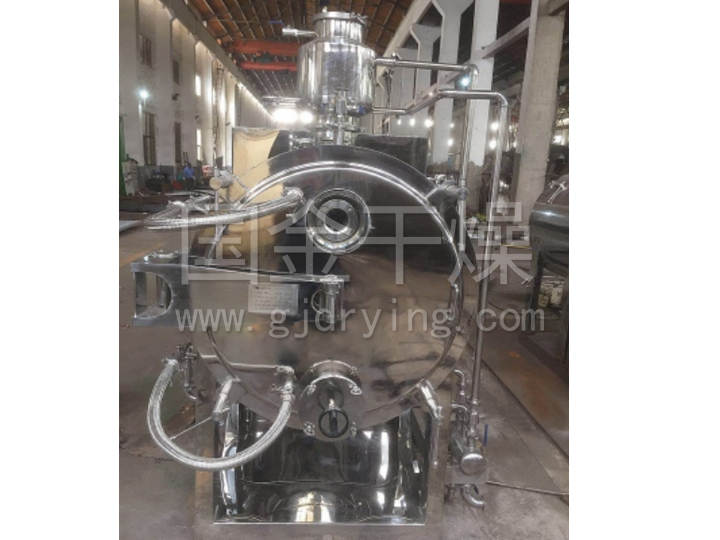

This drying equipment is a novel horizontal intermittent vacuum drying equipment based on the introduction and absorption of domestic rake drying technology.Wet materials undergo conduction evaporation,and a scraper stirrer is provided to continuously remove materials on the hot surface,and the materials are pushed into a container to form a circulating flow.After evaporation,water is pumped out by a vacuum pump.
The company is the most professional manufacturer of rake dryers in China.

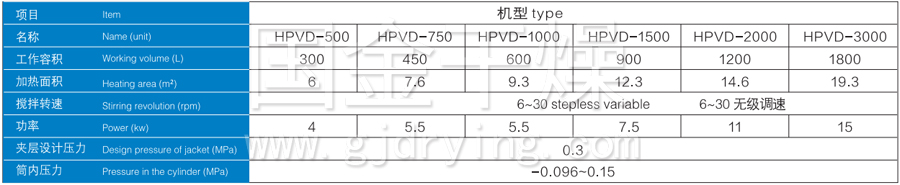

Notes:the evaporated amount of water its related to the characteristics of raw materials and the temperature of air in and air out.With renew products unceasingly,the related parameters will be exchanged,it does not announce in advance,pardon
