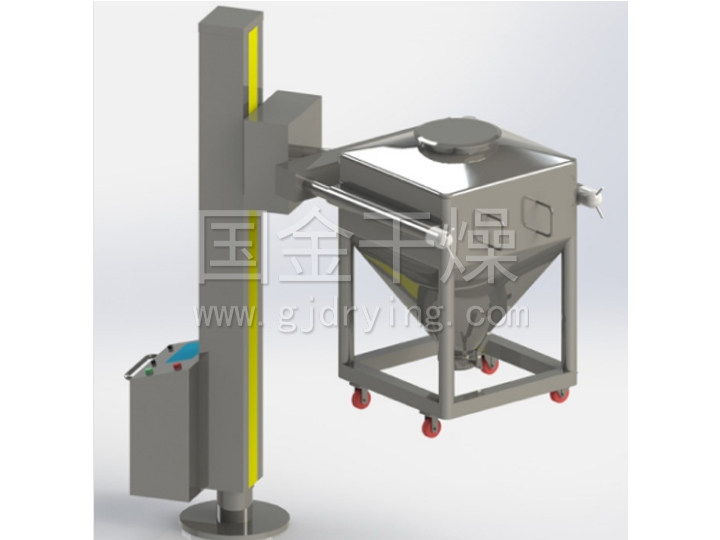

HDT Single Arm Lifting Hopper Mixer

Introduction: ApplicationsThis machine has the functions of lifting and mixing,raising the discharge and so on.A device can be equipped with a number of different specifications of the mixture hopper to meet the needs of different varieties of different batches of …

Hotline: 0086-15380092122
Inquiry

Applications

This machine has the functions of lifting and mixing,raising the discharge and so on.A device can be equipped with a number of different specifications of the mixture hopper to meet the needs of different varieties of different batches of mixing.Widely used in pharmaceutical,chemical,food and other industries.


Principle of work

The machine is composed of a column,a chassis,a rotary fork frame,a rotary mechanism,a hydraulic system and a control system.When the utility model is used,the hopper which is filled with material is pushed into the fork frame,and the nut is locked tightly,and the mixing process is started automatically to complete the mixed operation,and the hopper is dropped to the ground.


Features

This machine is a new type of machine which is widely absorbed and digested by our company.The utility model has the advantages of reasonable structure,small occupation area,flexible use and strong adaptability.The utility model not only can realize the mixing function,but also can realize the improvement of the high discharging and the reduction of the equipment input and transfer process.The mixing hopper and the rotation axis are 30 degrees,and the mixing effect is high.

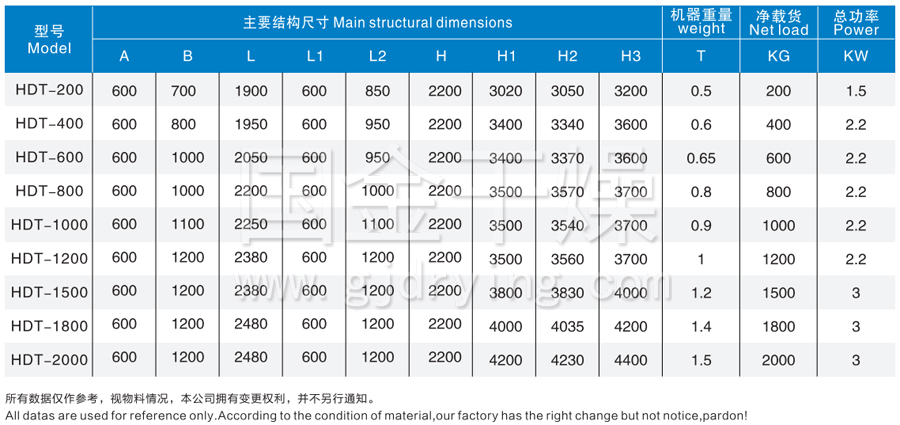

Technical Parameter
