Introduction: DescriptionsSPCD series belt drier is a continuous drying equipment for batch production,which is used for drying sheet,strip and granular materials with good air permeability.For dehydrated vegetables,Chinese herbal pieces and other materials with hi…
SPCD series belt drier is a continuous drying equipment for batch production,which is used for drying sheet,strip and granular materials with good air permeability.For dehydrated vegetables,Chinese herbal pieces and other materials with high moisture content,but the material temperature is not allowed to be high,this series of dryers have the advantages of fast drying speed,high evaporation intensity and good product quality.Pasty materials such as dehydrated filter cakes can also be dried after being granulated into rods.SPCD series belt drier is a continuous drying equipment for batch production,which is used for drying sheet,strip and granular materials with good air permeability.For dehydrated vegetables,Chinese herbal pieces and other materials with high moisture content,but the material temperature is not allowed to be high,this series of dryers have the advantages of fast drying speed, high evaporation intensity and good product quality.Pasty materials such as dehydrated filter cakes can also be dried after being granulated into rods.
◆Its dry area,air pressure,air amount,dry temperature and speed of net belt can be adjusted in order to suitable foe different characterisics of vegetable and the requirement of quality.
◆It can adopt different process and equip necessary auxiliary equipment in accordance with different characteristics of vegetable.
◆It can meet to dry different vegetables such as,root,halm,leaf,tuberos rot,big granule and produce in batch.Meanwhile it can maintain content of nutrition,color,etc of vegetable in most extent.
◆The type raw materials are garlic,cushaw,giantarum,while turnip,yam,bamboo shoot,capsicum,onion,apple,etc.
◆The dryer for vegetable dehydration consists of feeder,drying bed,heat exchanger,damp exhaust fan,etc.
◆When operation,air will be entered into dryer and heated through heat exchanger.Being adopted scientific and reasonable cycle method,the hot air will pas through raw materials to be dried on the bed and carry out uniform heat exchange.Under the action of cycle fan,the hot air stream inside each unit of the dryer will carry out hot air cycle.Final air with low temperature and high damp will be out.The whole drying process with stably and high effect will be finished.

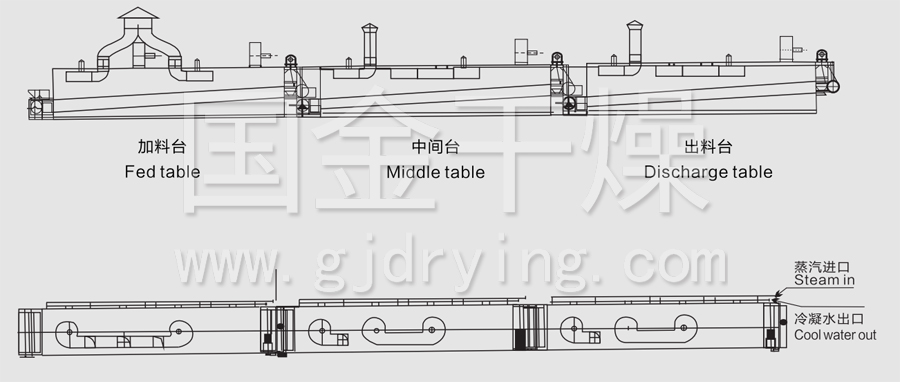

Note:1)When make fed table,middle table and discharge table with same specification mentioned above in series for use,it can form the proces:requirements of productions line for vegetables dehydration and raise the output obviously and guarantee the quality of products effectively.
2)The height of equipment does not include the height of fan and air duct.
