Introduction: ApplicationsThis machine consists of three parts:the main machine,the auxiliary sail and the electric control box.The design is compact,the structure is reasonable,with air separation,no sieve and no net.The machine is equipped with a grading mechanis…

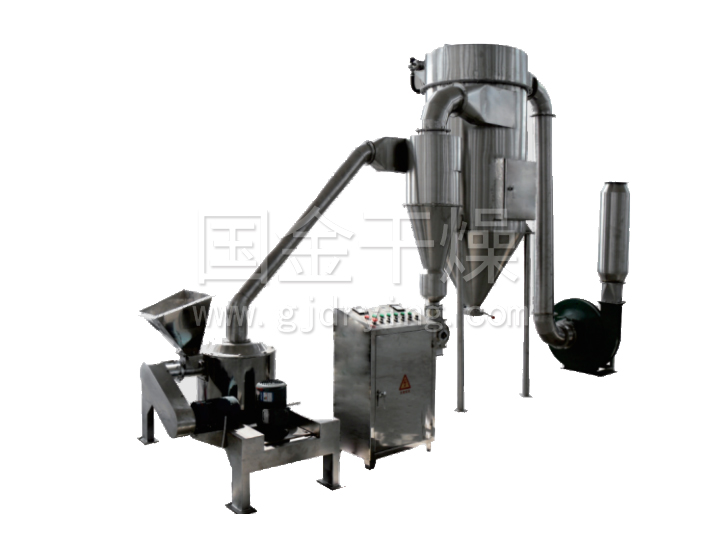

This machine consists of three parts:the main machine,the auxiliary sail and the electric control box.The design is compact,the structure is reasonable,with air separation,no sieve and no net.The machine is equipped with a grading mechanism.The crushing and grading can be completed at one time.Negative pressure transportation enables the heat generated in the cavity to be continuously discharged during the crushing process,so it is also suitable for the crushing of thermosensitive materials.The machine has wide application range,continuous production process and adjustable discharging granularity.It can handle the crushing and grading of many materials such as chemicals,food,medicine,cosmetics,fuel,resin,shell,etc.The machine has reached the international advanced level.
The material is sent to grinding chamber through hopper and screw conveyer,and then pulverized by high speed rotary blades.Processed fine material are winnowed and collected by the negative pressure of an air intake of a blower,dust collector is included.The advantages of it are very little dust,high utilization of the raw material and cost reduction

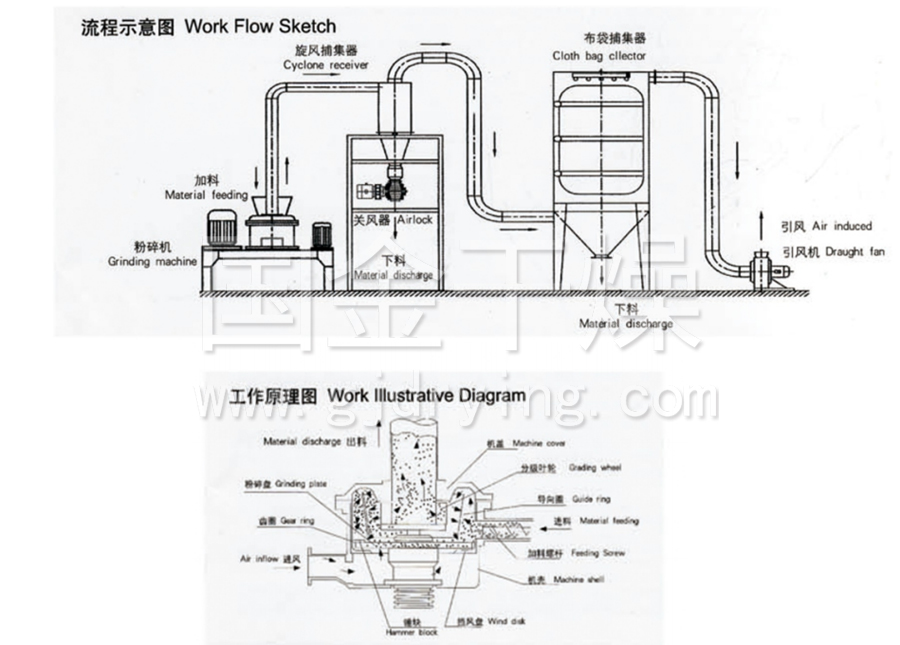

Work Flow Sketch
