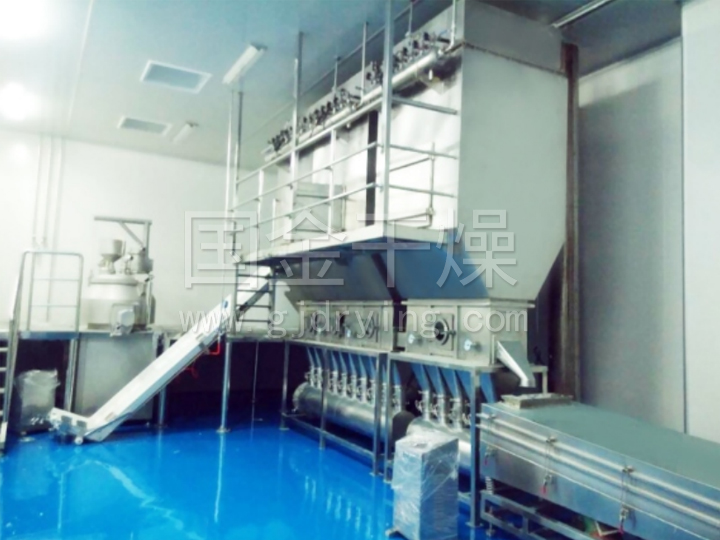

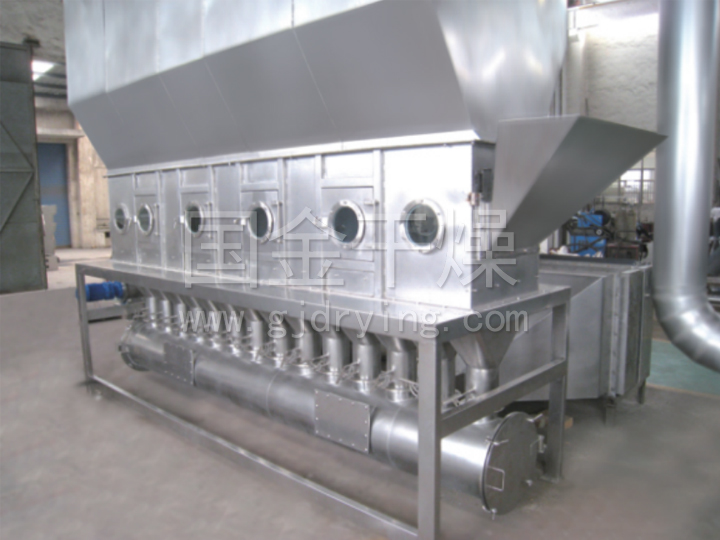

HFBD Series Horizontal Fluid Bed Dryer

Descriptions

The fluidized bed dryer consists of air filter,heater,fluidized bed,rotating segment feeder,cyclone separator bag dust remover,high press.centrifugal fan and stage for operation.According to different characters of different materials to be dried,the dryer can be equipped with both cyclone separator and bag dust remover or with either of them.Generally speaking,for those pellet materials with a large specific gravity,only a cyclone separator is needed.And for those granule or powder materials with a small specific gravity,a bag dust remover is needed and so is a pneumatic conveying device if possible.The dryer can also be equipped with a rotating segment feeder if required.

Features

This fluidized bed dryer can achieve automation and continuous drying process.It has a high drying speed and a low temperature and the product quality can be ensured,meeting GMP requirements.The heating resource can be steam,electricity or furnace.

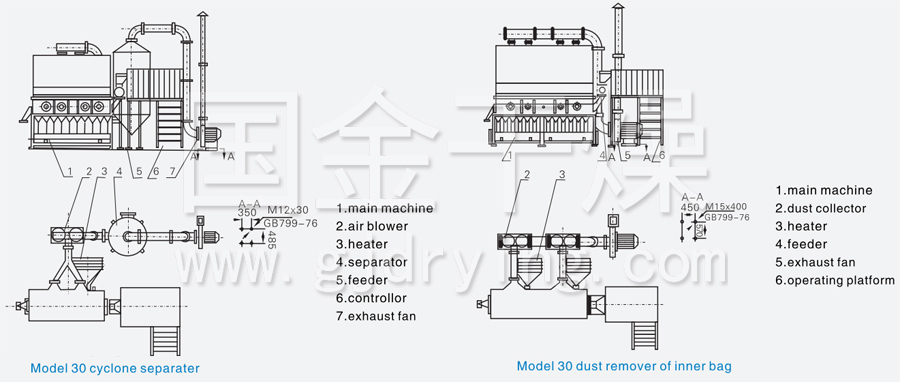

Sketch of structure

Applications

This fluidized bed dryer is suitable for drying pellet or granule materials such as raw materials for medicine,tablet granules,traditional Chinese medicine drink granules in pharmaceutical industry;plastic resin,citric acid and other powder or granule materials in chemical industry .It also can dry grain,corn embryo,feed etc.The most suitable diameter of the materials is 0.5-3mm.

Principle of work

Granule or pellet solid materials are fed into the fluidized bed dryer through the feeder.Filtrated clean air is heated and charged onto the bottom of the fluidized bed to contact with the solid materials on the distributing plate,where fluidization can be reached and the heat exchange between solid and air can be achieved.After being dried, the products are discharged from the outlet.Waste gas is discharged from the top of the fluidized bed,and powder materials are recovered by the cyclone separator or bag dust remover.

Instructions for installation

◆Fluidized bed cyclone separator and cloth bag dust collector should be placed on flat concrete groud without any screws on foundation The air blower may be installed indoors or outdoors with foundation
and screws.The plane design can be pantly adjusted in accordance
with the building conditions.
◆No air should leak from the air pipe system so as not to influence the drying efficiency.

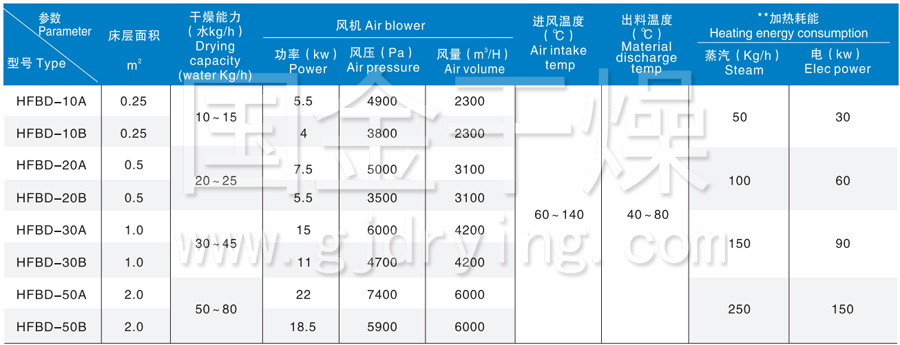

Technical Parameter

'Drying capacity":when drying sweet-sour plum crystals,it should be measured on the basis the primary moisture contents of 20%and final moisture conten ts of 5%and the air intake temperature at 130C.The dry capacity of other materials should be based on different drying conditions.
"Heating energy consumption":Steam or electric power may be used separately.
